Motherboard Cooling Fan

 Motherboard Cooling Fan

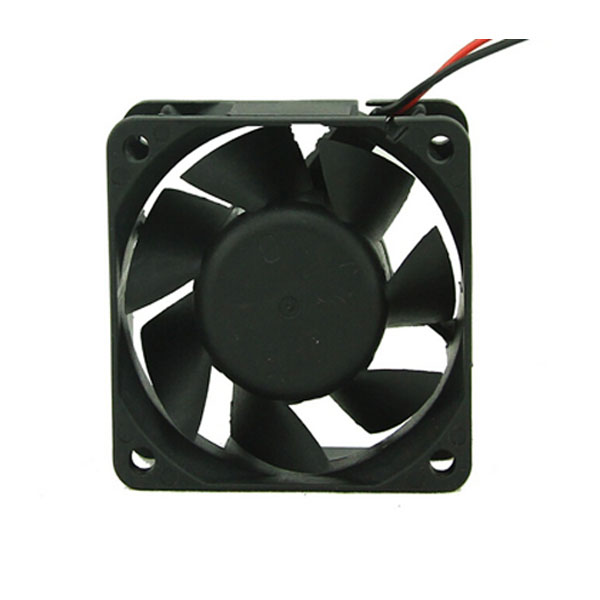

The General Description of Brushless DC Fan

Each of the fans has DC brushless motor for driving,a tubular frame and plastic impeller.

They have some superior features such as large air volume,low noise,low EMI,low power

consumption,high efficiency and long life etc. They are specially used in computer system.

Office automation products,and automatic applications on the ground for air cooling and

venting where there is a DC power supply.



Technical Parameters

Model

Rated voltage
(VDC)

Startup Voltage
 (VDC)

Current Amp

(A)

Speed
 (RPM)

Air flow
(CFM)

Static Pressure
(Inch-H2O)

Noise Level
 (dB-A)

Weight

(g)

DC6020H05

5.00

3.50

0.35

4000

16.53

3.90

30

52.00

DC6020M05

5.00

3.50

0.25

3300

13.40

2.77

25

52.00

DC6020L05

5.00

3.50

0.15

2500

9.58

1.65

20

52.00

DC6020H12

12.00

6.00

0.16

4000

16.53

3.90

30

52.00

DC6020M12

12.00

6.00

0.12

3300

13.40

2.77

25

52.00

TDC6020L12

12.00

6.00

0.08

2500

9.58

1.65

20

52.00

DC6020H24

24.00

12.00

0.13

4000

16.53

3.90

30

52.00

DC6020M24

24.00

12.00

0.10

3300

13.40

2.77

25

52.00

DC6020L24

24.00

12.00

0.08

2500

9.58

1.65

20

52.00
